3D Studio Max Adding Texture
We will be adding texture or applying materials to the house model we have created earlier.
Setting ids for the submaterials:

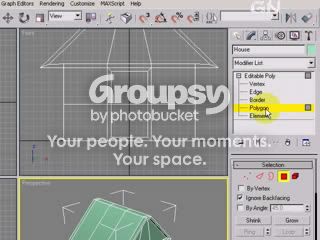

1. Select polygon editing mode
2. Ensure Ignore backfacing is unchecked (to prevent accidentally selecting ‘backfacing’ polygons)
3. Select all polygons of house
4. Under modify panel, set selected polygons to id of 1
5. Select only polygons associated with roof, and set these selected polygons to id of 2
6. Select only polygons associated with door, and set these selected polygons to id of 3
7. Under modify panel, select Editable Poly, to select the entire object (i.e. the house) (and to de-selected polygon editing mode)
Adding UVW Map modifier:

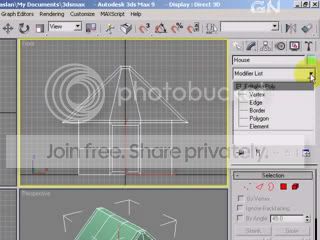

1. Under modify panel, under modifier list dropdown list, select UVW Map, to add UVW Mapping modifier (this makes it easier to ensure textures are properly mapped to the object)

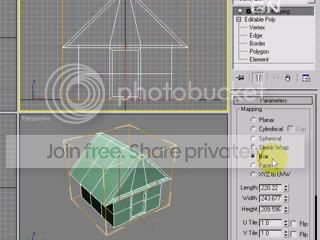

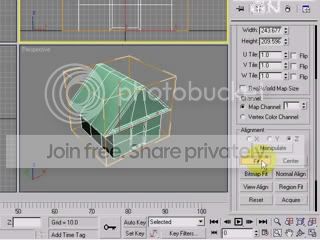

2. Under Mapping section, select Box
3. Under Alignment section, click Fit
Applying texture:
1. press the letter ‘M’ for to open Material Editor
2. click Standard, to open Material/Map browser
3. Click New, and select details

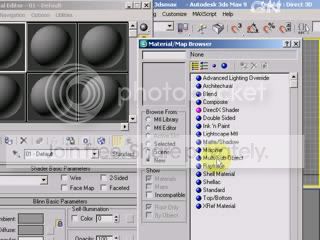

4. Double-click Multi/Sub-Object
5. Click OK, to keep old material as sub-material

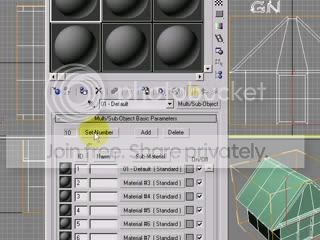

6. Click Set Number, to change number of sub-materials
7. Enter 3 (as we have only set ids for 3 sets of polygons previously), and click OK
8. Enter Roof for id of 2 (polygons corresponding to roof were set to id of 2, previously).
9. Enter Door for id of 3 (polygons corresponding to door were set to id of 3, previously).
10. Enter Wall for id of 1 (the remaining polygons corresponding to wall, which were set to id of 1, previously).

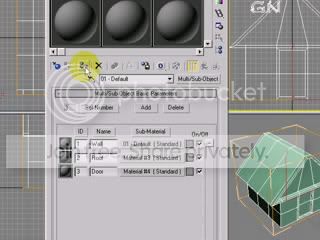

11. Click Assign material to selection (ensure that House object has already been selected).
12. Click submaterial for id of 1, name of Wall

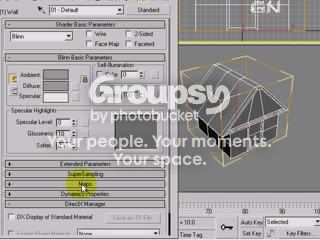

13. Click on Maps, to open maps

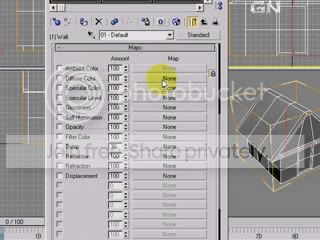

14. Click map button beside, Diffuse color, to select texture for current material (this opens Material/Map browser)
15. Click Mtl Library, to browse from material library
16. Click small thumbnail option, to show materials as small thumbnails
17. Select a texture for wall, eg. Yellobrk.JPG

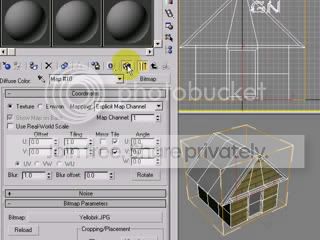

18. Click View in viewport, to view texture in Viewport
19. Adjust U or V tiling, if you believe the tiling for the material needs to be adjusted (eg. 5 for U tiling, and 3 for V tiling)

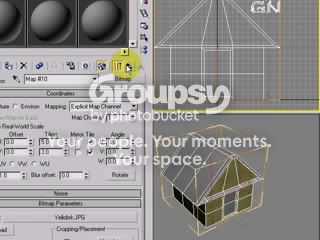

20. Click Go to parent, to go up to parent ’screen’, which in this case, showed the maps

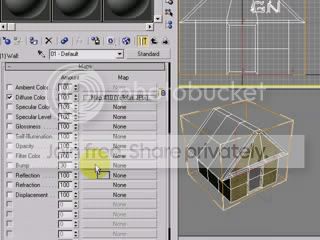

21. Click and drag current map from diffuse color to bump

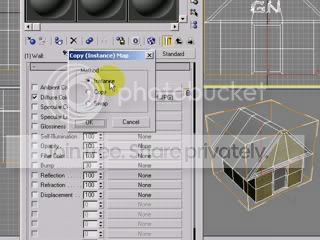

22. Select copy method of Instance.
23. Change value of bump from 30 to 100, to increase effect of bump (bump is used to give illusion of depth or roughness to texture)
24. Click Go to parent, to go up to parent ’screen’, which in this case, showed the multi/sub-object basic parameters
25. Repeat steps 12 to 24, for Roof and Door (changing material and tiling used accordingly).
Final picture of house with texture
Try adding landscape
